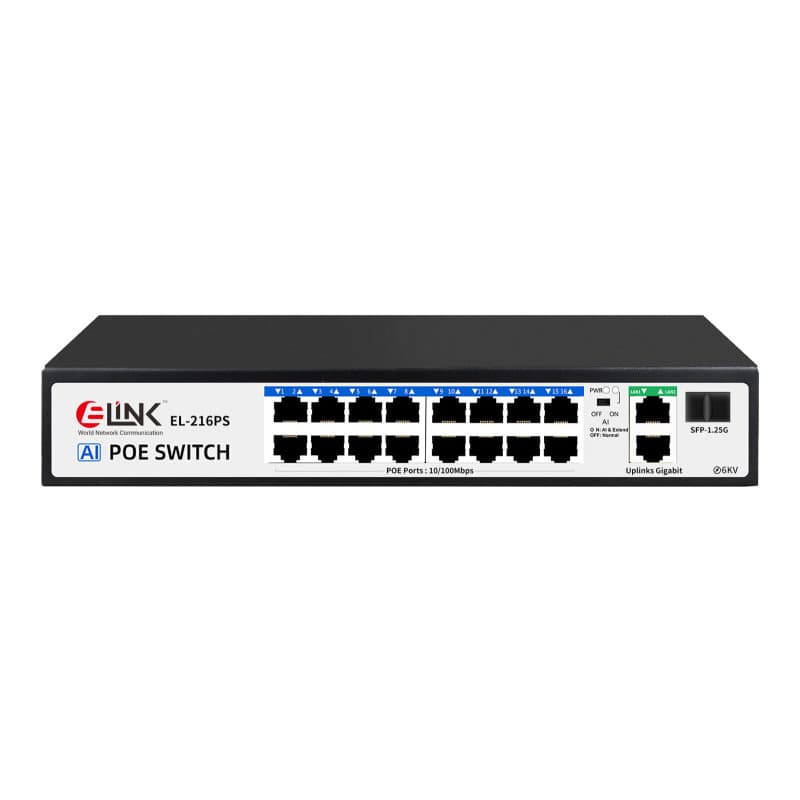

E-Link EL-216PS 16-Port PoE Switch 2 Uplink Gigabit with 1 SFP Port 1.25GB - ৳7,400
Delivery
To BangladeshDelivery From:
BangladeshDescription
| Product | 19 Port Networking PoE Switch |
| Model | EL-216PS |
| Lightning Protection | 6KV |
| Surge Protection | 8KV |
| PoE Port | 1 to 16 support IEEE802.3AF/AT Standard |
| Output Power | 15.4W/30w : IEEE802.3af/at |
| Power Pin | Both 1/2+ 3/6- and 4/5+7/8- |
| Whole Power | 240W(52V 4.8A) |
| PoE Protocol | IEEE 802.3af/IEEE 802.3at |
| PoE Type | End-span |
| Power Distance | <250m |
| Network Standard | IEEE 802.3, IEEE802.3u, 802.3x, 802.3af/at |
| Network Medium | 10/100BASE-TX:5 class and above non shielded twisted pair |
| Data Distance | <250m |
| Switch Capability | 52Gbps |
| Forwarding Mode | Store and forward |
| Forwarding Rate | 100BASE-tx: 14800pps/port |
| MAC Address | MAC address table 16K |
| Port Function | Power priority mechanism, fast and forward, MAC automatic learning and aging EEEBO2.3X Full-duplex and mode and backpressure for Half-duplex mode |
| LED Indicator | Each port occupied 1 LINK/ACT.1000Mbps, POE Status Indicator, Whole power indicator |
| Working Environment | Working temperature: -10 --55 C |
| Weight | 2 kg |
| Size | 295x192x44(L*W*H}mm |
Specifications
