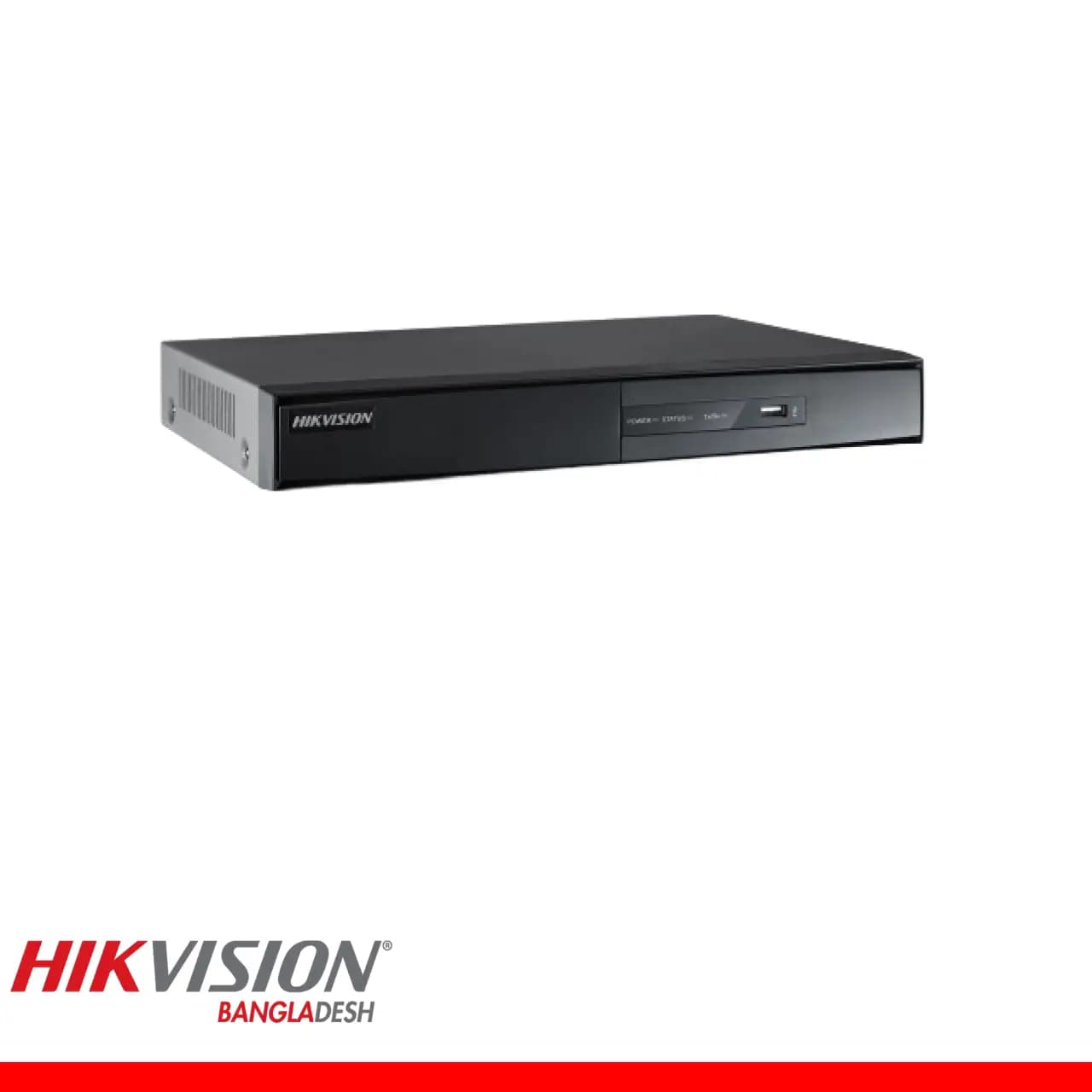

Name: Hikvision DS-7216HQHI-K1 16-ch 1080p 1U H.265 DVR
Brand: Hikvision
SKU: 6QUWQ6RF
Price: 20000 BDT
Availability: InStock

Product Type: Hybrid DVR / XVR
Analog Video Inputs: 16 × BNC
IP Camera Inputs: 8 Channels, Expandable up to 24 Channels
Maximum IP Camera Resolution: Up to 6 MP
Supported IP Video Compression: H.265+, H.265, H.264+, H.264
Analog Camera Support: HDTVI, AHD, HDCVI, and CVBS
HDTVI / AHD / HDCVI Resolution Support: 4 MP, 3 MP, 1080p, and 720p
CVBS Standard: PAL / NTSC
Video Compression: H.265 Pro+, H.265 Pro, H.265, H.264+, H.264
Encoding Resolutions: 4 MP Lite, 3 MP, 1080p, 1080p Lite, 720p, 720p Lite, VGA, WD1, 4CIF, and CIF, Depending on Operating Mode
Maximum Main Stream Frame Rate: Up to 25 fps (PAL) / 30 fps (NTSC), Depending on Resolution
Video Bit Rate: 32 Kbps–6 Mbps
Stream Type: Video or Video & Audio
Dual Stream: Supported
Audio Compression: G.711u
Audio Bit Rate: 64 Kbps
Audio Input: 1 × RCA
Audio Output: 1 × RCA
Two-Way Audio: Supported via First Audio Input
Synchronous Playback: Up to 16 Channels
HDMI Output: 1 × HDMI
Maximum HDMI Resolution: 4K (3840 × 2160) at 30Hz
Additional HDMI Resolutions: 2560 × 1440 at 60Hz, 1920 × 1080 at 60Hz, 1280 × 1024 at 60Hz, 1280 × 720 at 60Hz, 1024 × 768 at 60Hz
VGA Output: 1 × VGA
Maximum VGA Resolution: 1920 × 1080 at 60Hz
CVBS Output: 1 × BNC
CVBS Output Resolution: PAL 704 × 576 / NTSC 704 × 480
Storage Interface: 1 × SATA
Maximum HDD Capacity: Up to 10 TB
USB Ports: 2 × USB 2.0
RS-485: Half-Duplex
Alarm Input/Output: Not Available
Network Interface: 1 × RJ45 Gigabit Ethernet, 10/100/1000 Mbps Self-Adaptive
Maximum Remote Connections: 128
Network Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, and ONVIF
Power Supply: 12V DC
Power Consumption: ≤25 W without HDD
Dimensions (W × D × H): 315 × 242 × 45 mm
Weight: ≤2 kg without HDD

Hikvision DS-7216HQHI-K1 16-ch 1080p 1U H.265 DVR -
