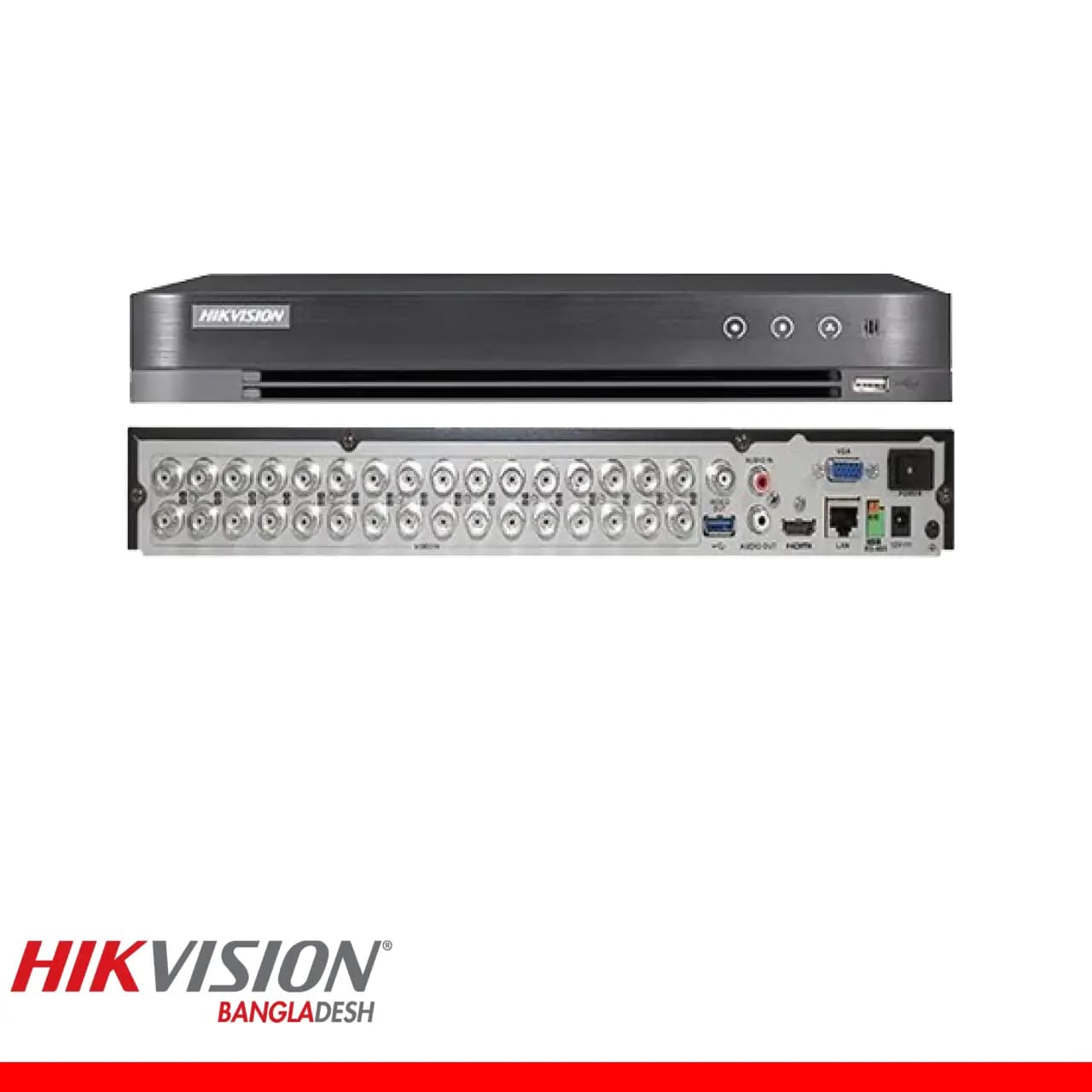

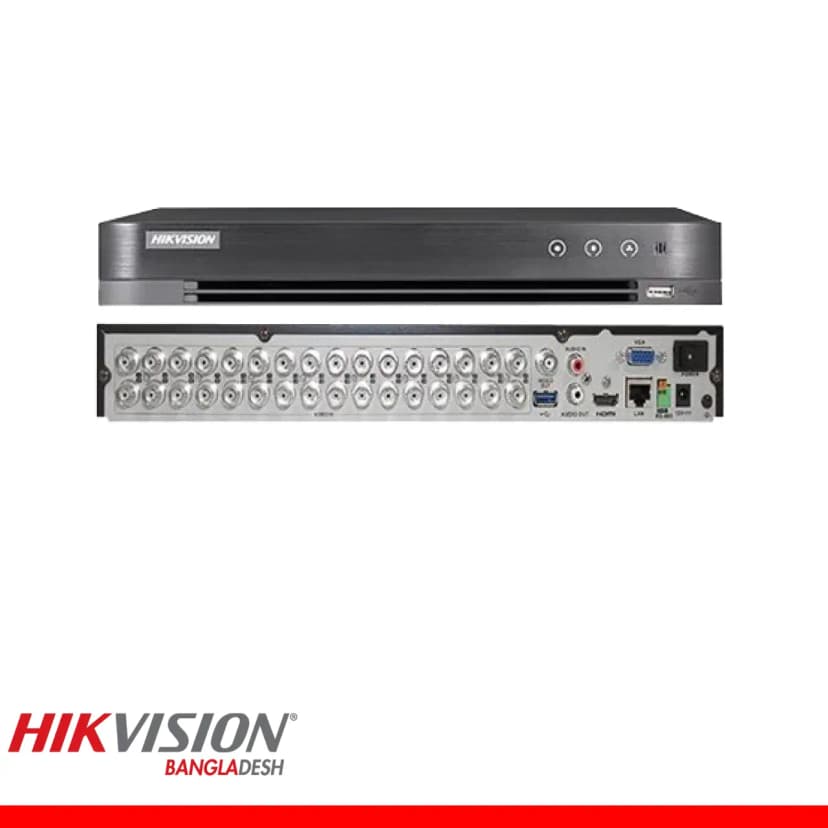

Hikvision DS-7232HQHI-K2 32-ch 1080p 1U H.265 DVR - ৳44,500
Color: Same as Picture
Delivery
To BangladeshDelivery From:
BangladeshDescription
| Video compression | H.265+/H.265/H.264+/H.264 |
| Encoding Resolution | When 1080p Lite mode not enabled: 4 MP lite/3MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF |
| Frame Rate | Main stream: When 1080p Lite mode is not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
| Video bit rate | 2 Kbps to 6 Mbps |
| Dual stream | support |
| stream type | video video and audio |
| Audio bit rate | 64 Kbps |
| Video and audio | — |
| Ip video Input | 2-ch Up to 4 MP resolution Supports H.265+/H.265/H.264+/H.264 IP cameras |
| Analog video input | 32-ch – BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDTVI input | 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 Note: The 3 MP signal input is only available for channel 1/2/3/4. |
| AHD Input | 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI input | 080p25, 1080p30, 720p25, 720p30 |
| CVBS input | PAL/NTSC |
| CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| HDMI1/ VGA output | VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz,1280 × 720/60Hz, 1024 × 768/60Hz HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz,1920 × 1080/60Hz, 1280 ×1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Audio Input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) |
| Two way audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1 st audio input) |
| synchronous playback | 16-ch |
| Remote connections | 128 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI,UPnP™, HTTPS, ONVIF |
| Network interface | 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| SATA | 2 sata interface |
| Capacity | p to 8 TB capacity for each disk |
| serial interfaces | RS-485 (half-duplex) |
| usb interface | Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0 |
| More Information | Audio compression: G.711u Video / Audio output: — network management: — Hard disk: — capacity: Up to 8 TB capacity for each disk External Interface: — |
